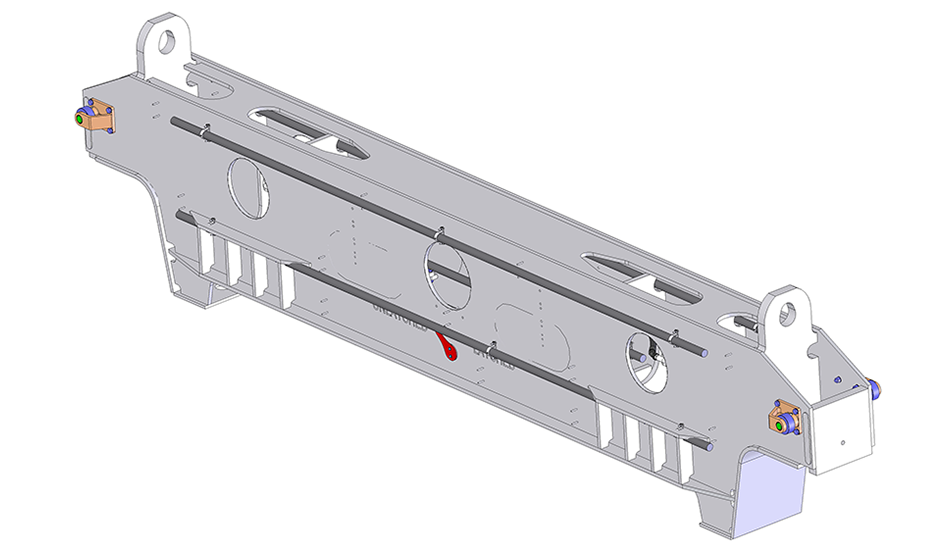

Uni designed replacement beams and detailed replacement parts as part of the McNary Intake Gates and Isophase Bus Systems refurbishment. The 45 hydraulically operated support beams each hold an intake gate in position during operation.
Uni designed replacement beams and detailed replacement parts as part of the McNary Intake Gates and Isophase Bus Systems refurbishment. The 45 hydraulically operated support beams each hold an intake gate in position during operation.
Completion: 2024
Location: Umatilla, Oregon
Scope of Work: Design
Client: US Army Corp of Engineers, Walla Walla District
Photo courtesy of US Army Corp of Engineers
